Check Point via SIEM setup for Workbench

  • Updated

This procedure helps you to connect your Check Point via SIEM to the Expel Workbench. The procedure is to port in logs by creating a new Syslog source, configuring that source in Workbench, then your Check Point via SIEM device in Workbench.

Note

Some steps in this procedure vary greatly depending upon the SIEM-based technology you use.

In this article

Step 1: Logging Check Point to a desired SIEM

Refer to your SIEM documentation or work with your SIEM representative to port in Check Point logs. You can also refer to the following web references for creating a new Syslog source:

Step 2: Configure the SIEM in Workbench

This link opens the Expel Knowledge Base section for connecting SIEM-based technology to Workbench. Follow the applicable article to configure your SIEM-based tech and confirm that Check Point logs are flowing through and available.

Step 3: Configure Check Point via SIEM in Workbench

Now that we have the correct access configured and noted the credentials, we can integrate your tech with Workbench.

Note

Expel secures all login information our SOC analysts need about your devices in a MFA password product. Access to this login information is protected using our internal MFA processes. To learn more about the IP addresses all Expel traffic comes from, go here.

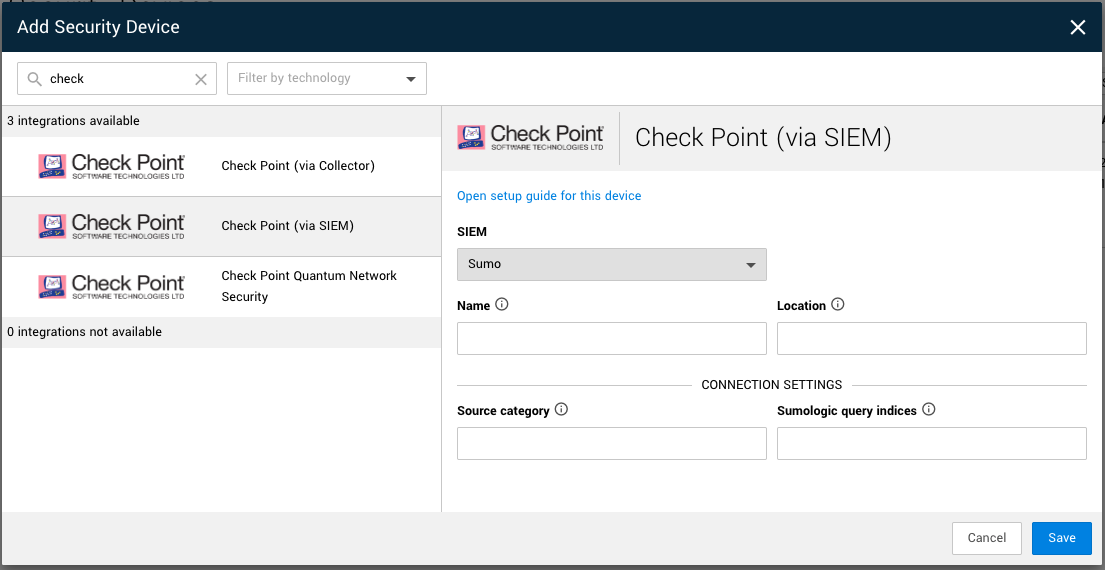

  1. In a new browser tab, go to https://workbench.expel.io/settings/security-devices?setupIntegration=checkpoint.


  2. Fill in the device fields like this:

    1. For SIEM select the SIEM that was onboarded in Step 2.

    2. For Name type the host name of the Check Point device.

    3. For Location type the geographic location of the device.

  3. Fill in the Connection Settings fields based on the SIEM selected:

    1. For Source category, type in the Sumo Logic source category for this device.

  4. Click Save.

You can see if the device is healthy on the Security Devices page. It may take a few minutes to see the device listed as healthy.

To check if alerts are coming through, navigate to the Alerts Analysis page. Scroll to the device you want to check and click View alerts. Switch to grid view, then check the list for device alerts. It can take 36 to 72 hours for alerts to appear after setup, as we tune your device.

Tip

This article was accurate at the time of writing, but changes happen. If you find the instructions are outdated, leave a description in the comment field below and let us know!
