Sumo Logic CSE setup for Workbench

  • Updated

Tip

This article was accurate at the time of writing, but changes happen. If you find the instructions are outdated, leave a description in the comment field below and let us know!

Step 1: Enable console access

Having read-only access to the interface of your technology allows Expel to dig deeper during incident investigations. Our device health team uses this access to investigate potential health issues with your tech.

  1. Sign in to the Sumo Logic CIP console to create a new user.

  2. Navigate to Administration > Users and Roles > Users and click the Add User button at the top right of the page.


  3. FIll in the below information.


    • For First Name type Expel.

    • For Last Name type SOC analysts.

    • For Email type: soc+<your_company_name>@expel.io.

      Tip

      Yes, the "+" sign is part of the email address, and it's important. Click here to find out why.

    • For Roles select the analyst role.

    • Click Add New User.

  4. Verify that Expel SOC now appears on the Users page.

  5. Sign into Sumo Logic CSE console.

  6. Navigate to Accounts.


  7. Click Invite at the top right of the page.


  8. Invite the Sumo Logic CIP user from step 1 with a role of Analyst.


Step 2: Generate API credentials

To integrate the technology with Workbench, we need to create secure credentials to the API.

  1. Edit the Sumo Logic CSE user created in step 1.

  2. Select API Key Enabled.

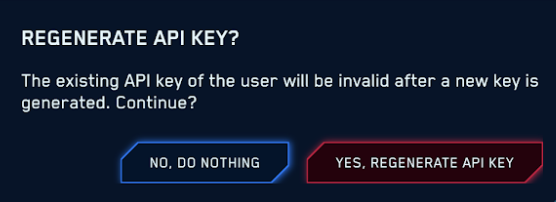

  3. Select YES, REGENERATE API KEY.


  4. Click UPDATE and log out.

  5. Log back into Sumo Logic CSE console with the new user created in step 1.

  6. Click the user profile at the top right of the page.


  7. Copy API Key and make note of it.


Step 3: Configure the technology in Workbench

Now that we have the correct access configured and noted the credentials, we can integrate your tech with Workbench.

  1. In a new browser tab, log into https://workbench.expel.io.

  2. On the console page, navigate to Settings and click Security Devices.

  3. At the top of the page, click Add Security Device.


  4. Search for and select Sumo Logic Cloud.

  5. Type Name and Location. For example Sumo Logic CSE and Expel Lab.


    • For Server type the Sumo Logic CSE URL.

    • For API Key type the API Key copied and noted during step 2.

    • For Console Login type the information for user created in step 1.

    • Click Save.

You can see if the device is healthy on the Security Devices page. It may take a few minutes to see the device listed as healthy.

To check if alerts are coming through, navigate to the Alerts Analysis page. Scroll to the device you want to check and click View alerts. Switch to grid view, then check the list for device alerts. It can take 36 to 72 hours for alerts to appear after setup, as we tune your device.
