QRadar setup for Workbench

Sharon Burton
  • Updated

Tip

This article was accurate at the time of writing, but changes happen. If you find the instructions are outdated, leave a description in the comment field below and let us know!

Step 1: Enable console access

This procedure creates a user account for Expel that keeps the Expel activity separate from other activity on the QRadar console.

  1. Navigate to Admin > Users. A new window opens.

  2. Click +Add next to the search bar in the new window.


  3. Type a User Name.

  4. Complete User Description as you want.

  5. For E-mail type: soc+<Your_Organization_Name>@expel.io.

    Tip

    Yes, the "+" sign is part of the email address, and it's important. Click here to find out why.

  6. Under Authentication toggle Local Authentication Fallback on and type a password.

  7. Set the User Role and Security Profile to Admin.

  8. Click Save.

  9. Close the window.

Step 2: Enable API Access for Expel

This procedure creates an authentication token that allows the Expel Assembler to access the QRadar API.

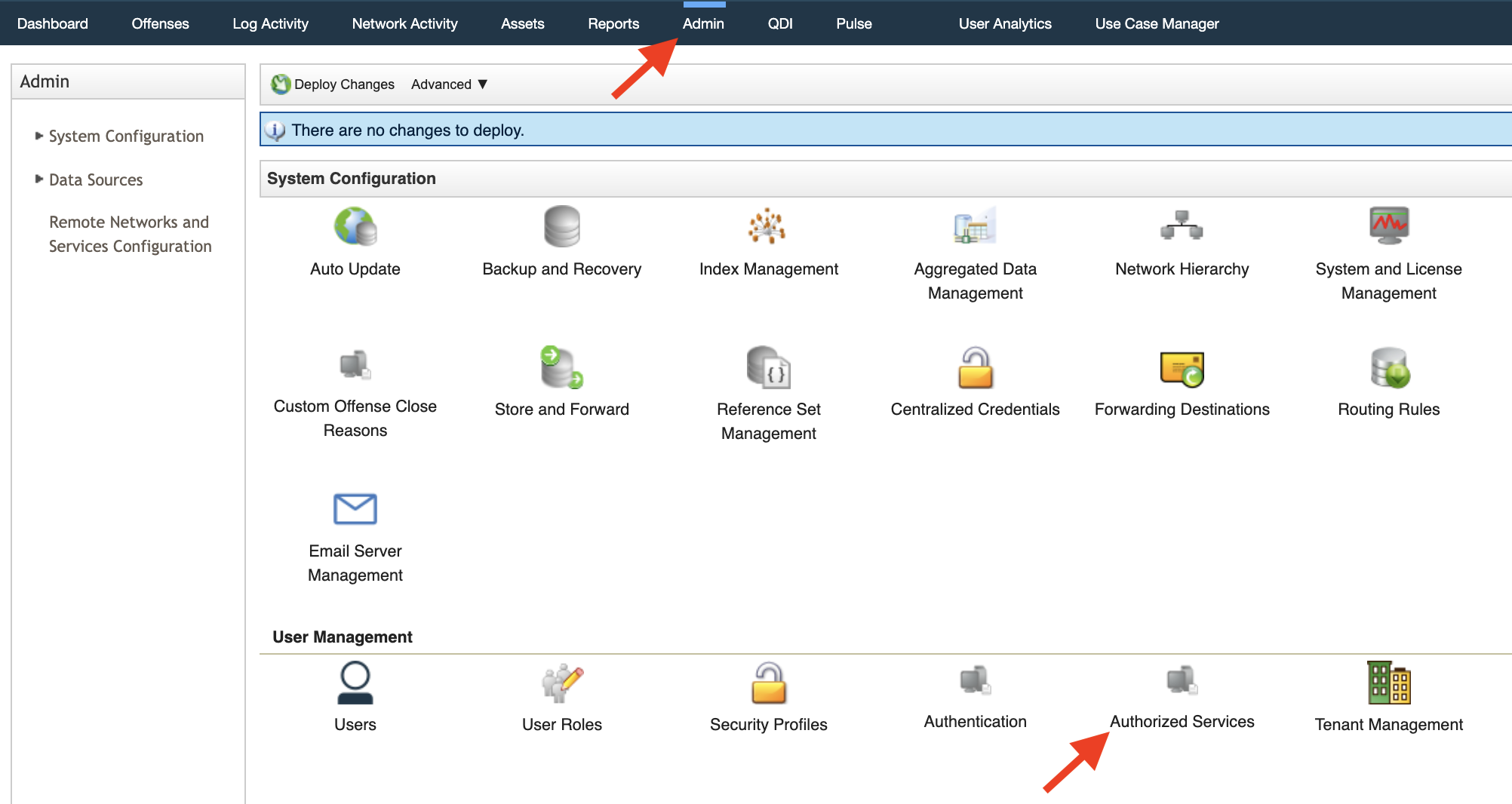

  1. Navigate to Admin > Authorized Services. A new window opens.

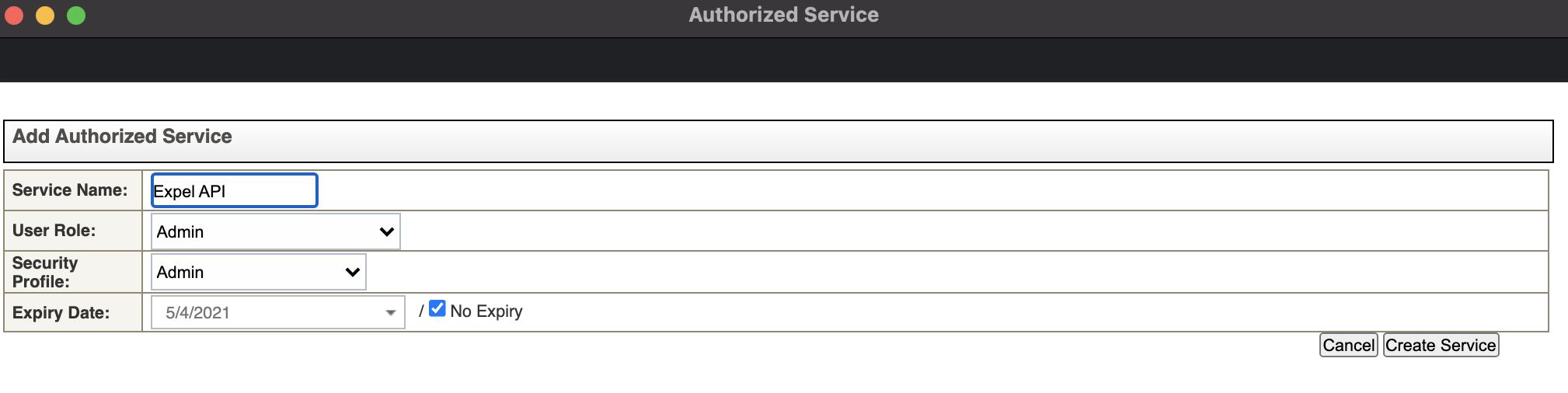

  2. Click the Add Authorized Service in the Manage Authorized Services window.


  3. Type Expel API as the Service Name.

  4. Make sure the User Role and Security Profile are set to Admin.

  5. Select No Expiry.

  6. Click Create Service.

  7. Make note of the newly generated Authentication Token.


Step 3: Configure QRadar in Workbench

Now that we have the correct access configured and noted the credentials, we can integrate your tech with Workbench.

  1. In a new browser tab, login to https://workbench.expel.io.

  2. On the console page, navigate to Settings and click Security Devices.

  3. At the top right of the page, click Add Security Device.

  4. Search for and select QRadar.


    • (Optional) Select the Assembler with a network connectivity to the QRadar device.

    • For Name type the hostname of the QRadar device.

    • For Location, type the geographic location of the appliance.

    • For Server address type the hostname or console IP of device.

    • For API key type the Authentication Token created in step 2.

    • For Username and Password type the credentials created in step 1.

  5. Click Save.

To check if alerts are coming through, navigate to Alerts on the console page. Click the icon in the upper right to switch to grid view, then check the list for device alerts.
