This article explains how to connect Zscaler Secure Internet Access (ZIA) to Workbench.
Prerequisites
Before starting this procedure, you must have:
-
A SIEM that Expel supports for this integration, which includes any one of the following:
-
Sumo Logic
Note
If you have a SIEM that's supported by Expel but isn't listed here, contact support.
-
The Nanolog Streaming Service (NSS) from Zscaler to forward data to your SIEM.
Quick Links
Step 1: Send Zscaler Events to a SIEM
The Nanolog Streaming Service (NSS) feed specifies the data from the logs that the NSS sends to the SIEM. Expel uses 3 NSS feeds to forward data to a SIEM.
-
The EXPEL_MALWARE feed captures any malware class events.
-
Feed Output Type: QRadar SIEM LEEF
-
Web Log Filters = Security > Malware Classes : Sandbox, Spyware, Virus
-
Feed Output Format =
%s{mon} %02d{dd} %02d{hh}:%02d{mm}:%02d{ss} zscaler-EXPEL_MALWARE: LEEF:1.0|Zscaler|NSS|4.1|fqdn=%s{host}\turl=%s{url}\tmethod=%s{reqmethod}\tuser_agent=%s{ua}\turlclass=%s{urlclass}\tcategory=%s{urlcat}\treferrer=%s{referer}\tresponse=%s{respcode}\tprotocol=%s{proto}\tduration_ms=%d{ctime}\tsrc=%s{cip}\tdst=%s{sip}\tbytes_rx=%d{respsize}\tbytes_tx=%d{reqsize}\tappclass=%s{appclass}\tappname=%s{appname}\tflow_id=%d{recordid}\torganization=%s{dept}\tusername=%s{login}\tvendor_version=%s{productversion}\tname=%s{reason}\talert_at=%s{time}%s{tz}\talertaction=%s{action}\tfile_hash=%s{bamd5}\tmime_type=%s{filetype}\tfilename=%s{filename}\tscore=%d{riskscore}\trealm=%s{location}\tnsssvcip=%s{nsssvcip}\tthreatname=%s{threatname}\tmalwarecategory=%s{malwarecat}\tmalwareclass=%s{malwareclass}\t\n
-
-
The EXPEL_THREAT feed surfaces any Advanced Threat events.
-
Feed Output Type: QRadar SIEM LEEF
-
Web Log Filters = Security > Advanced Threats : Adware/Spyware Sites, Botnet Callback, Browser Exploit, Cross-site Scripting, Cryptomining, Malicious Content, Other Threat, Peer-to-Peer, Phishing, Spyware Callback, Suspicious Content, Suspicious Destination, Unauthorized Communication, Web Spam
-
Feed Output Format =
%s{mon} %02d{dd} %02d{hh}:%02d{mm}:%02d{ss} zscaler-EXPEL_THREAT: LEEF:1.0|Zscaler|NSS|4.1|fqdn=%s{host}\turl=%s{url}\tmethod=%s{reqmethod}\tuser_agent=%s{ua}\turlclass=%s{urlclass}\tcategory=%s{urlcat}\treferrer=%s{referer}\tresponse=%s{respcode}\tprotocol=%s{proto}\tduration_ms=%d{ctime}\tsrc=%s{cip}\tdst=%s{sip}\tbytes_rx=%d{respsize}\tbytes_tx=%d{reqsize}\tappclass=%s{appclass}\tappname=%s{appname}\tflow_id=%d{recordid}\torganization=%s{dept}\tusername=%s{login}\tvendor_version=%s{productversion}\tname=%s{reason}\talert_at=%s{time}%s{tz}\talertaction=%s{action}\tfile_hash=%s{bamd5}\tmime_type=%s{filetype}\tfilename=%s{filename}\tscore=%d{riskscore}\trealm=%s{location}\tnsssvcip=%s{nsssvcip}\tthreatname=%s{threatname}\tmalwarecategory=%s{malwarecat}\tmalwareclass=%s{malwareclass}\t\n
-
-
(Optional) You can add an additional feed, EXPEL_INVESTIGATE, to forward all web log data to your SIEM. SOC analysts use this information to understand, scope, and answer security questions related to threat behavior. Specifically, how it got there, what it is, and what must be done to remediate.
-
Feed Output Type: QRadar SIEM LEEF
-
Web Log Filters = None
-
Feed Output Format =
%s{mon} %02d{dd} %02d{hh}:%02d{mm}:%02d{ss} zscaler-EXPEL_INVESTIGATE: LEEF:1.0|Zscaler|NSS|4.1|fqdn=%s{host}\turl=%s{url}\tmethod=%s{reqmethod}\tuser_agent=%s{ua}\turlclass=%s{urlclass}\tcategory=%s{urlcat}\treferrer=%s{referer}\tresponse=%s{respcode}\tprotocol=%s{proto}\tduration_ms=%d{ctime}\tsrc=%s{cip}\tdst=%s{sip}\tbytes_rx=%d{respsize}\tbytes_tx=%d{reqsize}\tappclass=%s{appclass}\tappname=%s{appname}\tflow_id=%d{recordid}\torganization=%s{dept}\tusername=%s{login}\tvendor_version=%s{productversion}\tname=%s{reason}\talert_at=%s{time}%s{tz}\talertaction=%s{action}\tfile_hash=%s{bamd5}\tmime_type=%s{filetype}\tfilename=%s{filename}\tscore=%d{riskscore}\trealm=%s{location}\tnsssvcip=%s{nsssvcip}\tthreatname=%s{threatname}\tmalwarecategory=%s{malwarecat}\tmalwareclass=%s{malwareclass}\t\n
-
Step 2: Configure the Technology in Workbench
-
In a new browser tab, log into https://workbench.expel.io/settings/security-devices?setupIntegration=Zscaler.
-

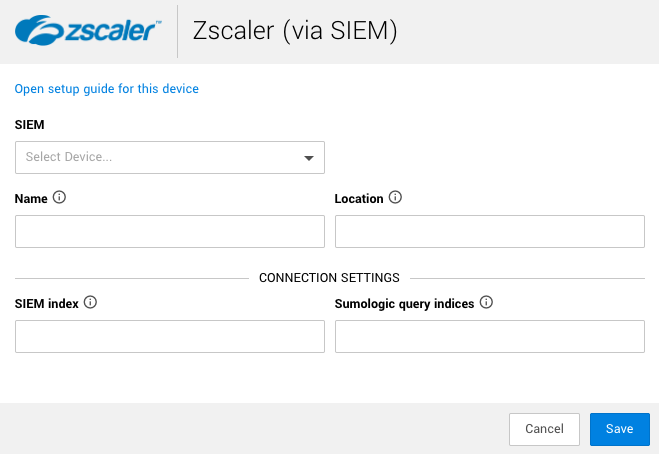

Complete the following fields in Workbench:
-
SIEM - select the SIEM you onboarded in Workbench.
- Name - enter a name that might help you more easily identify this integration, such as “CompanyName Zscaler”; this name will display in Workbench under the Name column, and is a text string that you can filter on.
- Location - enter the location of your integration, for example “cloud.” This is also a text string that you can filter on, so we recommend being consistent with location naming across your Expel integrations.
- SIEM index - enter the name of the SIEM index that Zscaler events are being indexed to.
-
Sumologic query indices - if you are subject to Sumo Logic’s Flex pricing, you will need to provide a comma-separated list of indexes you wish Expel to query in this field. If you are on the traditional Sumo Logic pricing model, do not use this field.
If you are not sure if this applies to you or you need more information, see Considerations for Sumo Logic Flex Pricing Customers.
-
-
You can set up console access now or use the instructions below to set it up later. Why do we need console access?
