This article explains how to connect the following Palo Alto Networks firewalls to Workbench:

  • Palo Alto Networks Next Gen Firewall

  • Palo Alto Networks Panorama

In this article

Step 1: Enable console access

This procedure creates a user account for Expel that keeps the Expel activity separate from other activity on the Palo Alto console.

Having read-only access to the interface of your technology allows Expel to dig deeper during incident investigations. Our device health team uses this access to investigate potential health issues with your tech.

Note
Expel secures all login information our SOC analysts need about your devices in an MFA password product. Access to this login information is protected using our internal MFA processes. To learn more about the IP addresses all Expel traffic comes from, go here.

Note
The Expel Assembler needs access to the Palo Alto device or instance through port 443 (UI) and 443 (API) for on-premises onboardings.

For cloud instances, you need to allow Expel through the internet. Expel has 6 egress IP addresses. All requests to the API come from 1 of the 6 IP addresses:

  • 34.75.13.114

  • 34.75.152.7

  • 35.243.190.98

  • 104.196.158.205

  • 34.75.81.28

  • 34.75.210.18

  1. Log onto the Palo Alto console.

  2. On the console page, navigate to Device > Administrators.

  3. Click Add at the bottom left of the page.

  4. In Administrator dialog box, type expeluser for Name.

  5. Type a Password.

  6. For Administrator Type, select Dynamic.

  7. Select Superuser (read-only) from the list below Administrator Type.

  8. Verify that expeluser is created on the console page.

Step 2: Generate API credentials

This procedure creates an authentication token that allows the Expel Assembler to access the Palo Alto API.

Note
Security Assertion Markup Language (SAML) authenticated accounts on Palo Alto can't generate API keys.

  1. In a new browser tab, open the following URL, replacing <hostname or IP address>, <username>, and <password> with the appropriate values for your Panorama console or the management interface of your Palo Alto Networks firewall: https://<hostname or ip address>/api/?type=keygen&user=<username>&password=<password>

    • <hostname or IP address> is your Palo Alto URL from your console page.

    • <username> is the username created in Step 1 (expeluser).

    • <password> is the password entered in Step 1.

  2. After the URL is complete, press Enter.

  3. On the next screen, the generated API key appears. Save it for later use.

  4. If you use Wildfire API, we also need a Wildfire API key in addition to the API key just created. Follow these instructions and create a Wildfire API key. Save it for later use.

Step 3: Configure the technology in Workbench

  1. In a new browser tab, log into Workbench. This link opens the Add Security Device screen directly.

  2. On the Add Security Device screen, fill in the blanks like this:

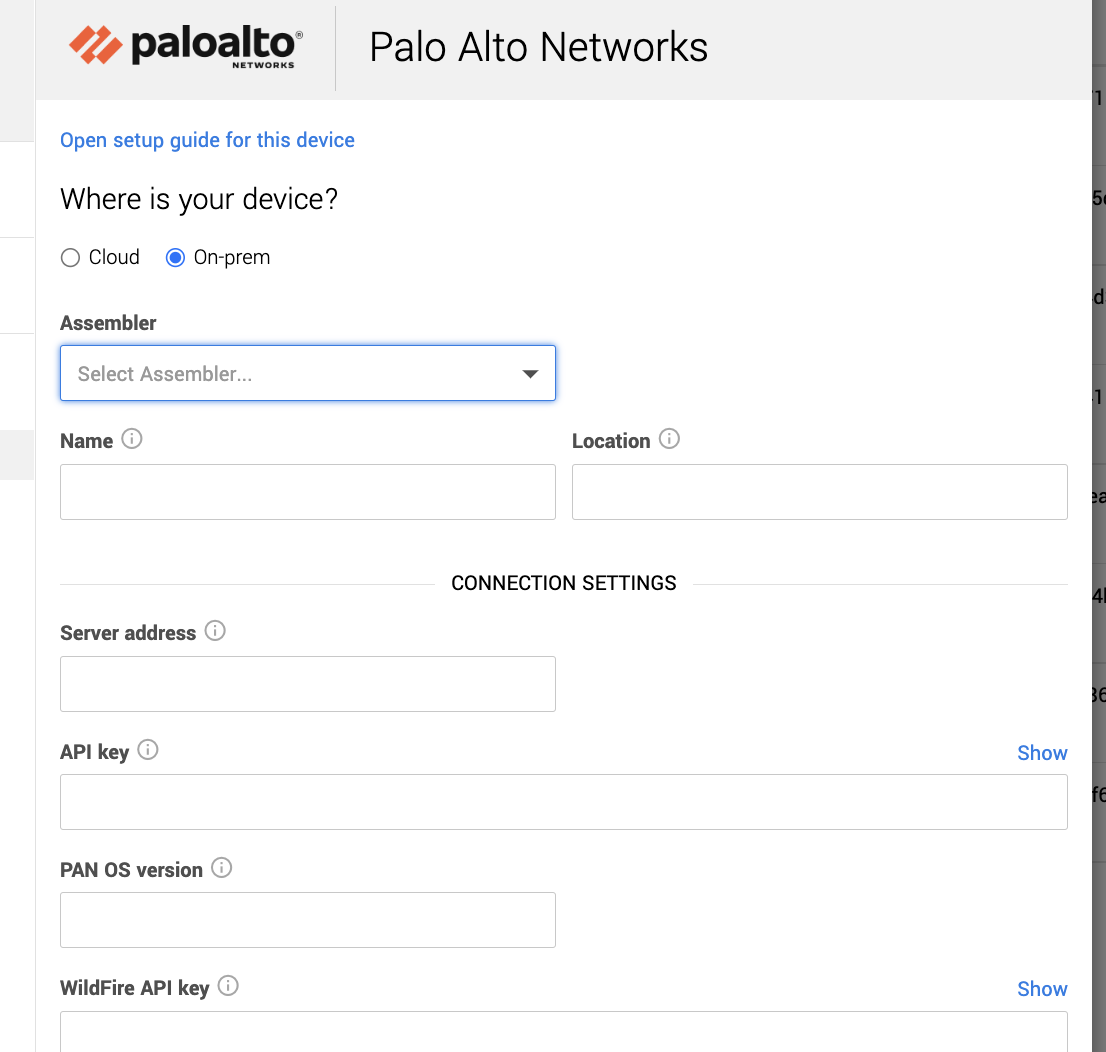

    Add Palo Alto Networks Firewall security device
    • For Where is your device? select your installation type.

    • For On-prem installations, select your Assembler from the list.

    • For Server address type the hostname or IP address of the Palo Alto management interface. Device IP can be found in the Palo Alto console under Dashboard > General Information > MGT IP Address.

    • For Name and Location, use a name and location that are meaningful to you.

    • For API key type the API key generated in Step 2.

    • For PanOS version, OS version must be specified if OS version is <= 6.

    • For Wildfire API key type the Wildfire API key generated in Step 2.

  3. You can provide console access now or set it up later. Use the instructions below to set it up later.

Step 4: Edit the device to add console access

  1. Open Workbench. Go to Organization Settings > Security Devices. Next to the device you just connected, click the down arrow and click Edit.

  2. In the Console Login area, type these details:

    • Console URL: type the console URL from the Server address in the Connection Settings area above. At the end of the URL, type /login.

    • Username: type the user name you created above.

    • Password: type the password you created above.

    • Two-factor secret key (32-character code): depending on how your organization enforces log-ins, this field may not apply to you. In these cases, you can leave it blank. This field is optional and if you have questions or concerns, reach out to your engagement manager or to support.
