This article explains how to connect GitHub to Workbench.

You must have:


This procedure is specifically for cloud-hosted GitHub deployments. For on-prem, use the GitHub self-hosted (on-prem) Workbench setup guide.

Step 1: Install the cloud-hosted GitHub App

Expel uses a GitHub App as part of the onboarding process. During installation, the Expel GitHub App receives the following organization-level privileges:

  • Members: Read+Write

  • Administration: Read-Only


GitHub doesn't log user identities, making it difficult to track suspicious activity at the user level. To solve this problem, Expel uses Write Permissions to map GitHub data to a user's identity.

  1. Navigate to the Expel GitHub Integration Application installation page: and click Install.

  2. Follow the steps to install the application within the GitHub Organization you want to onboard.


    If you have multiple organizations, create a separate Security Device in Workbench for each organization.

  3. After you successfully install the application, note the Installation ID that can be found in your URL under the format "<installation_id>/…"

Step 2: Configure the technology in Workbench


Expel secures all login information our SOC analysts need about your devices in an MFA password product. Access to this login information is protected using our internal MFA processes. To learn more about the IP addresses all Expel traffic comes from, go here.

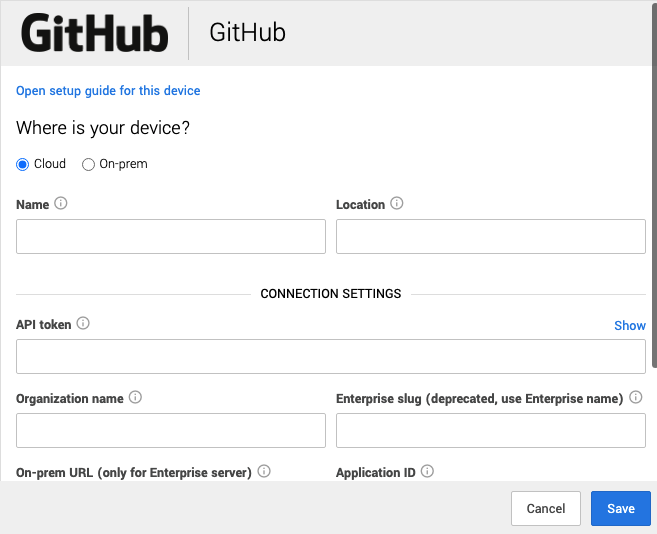

  1. In a new browser tab, login to

  2. For Where is your device? select Cloud.

  3. Complete these fields using the credentials and information from Step 1:

    • For Name type the name of your GitHub organization.

    • For Location type Cloud.

    • For Organization name type the name of your GitHub organization.

    • For Enterprise slug type the enterprise slug URL. This is only required if you use an enterprise SAML identity provider, otherwise you can leave it blank.

    • For the Application installation ID type the installation ID from Step 1.

  4. Leave the other fields blank.

Step 3: Update your GitHub logs to record/display IP addresses

While not required, consider updating your GitHub audit logs to record/display IP addresses. These addresses are not automatically logged in GitHub. This is a key field when the SOC analysts investigate GitHub activity.

Follow the instructions located here for steps to set this up.


This article was accurate at the time of writing, but changes happen. If you find the instructions are outdated, leave a description in the comment field below and let us know!
