Fortinet FortiGate NGFW via SIEM Setup for Workbench

This article helps you to connect your Fortinet FortiGate NGFW via SIEM to the Expel Workbench. The procedure is to port in logs by creating a new Syslog source, configuring that source in Workbench, then your Fortinet device in Workbench.

Note
Some steps in this procedure vary greatly depending upon the SIEM-based technology you use.

Quick Start

  1. Logging to a Desired SIEM

  2. Configure the SIEM in Workbench

  3. Configure Fortinet in Workbench

Step 1: Logging to a Desired SIEM

Refer to your SIEM documentation or work with your SIEM representative to port in Fortinet logs. You can also refer to the following web references for creating a new Syslog source:

Step 2: Configure the SIEM in Workbench

This link opens the Expel Help Center section for connecting SIEM-based technology to Workbench. Follow the applicable article to configure your SIEM-based tech and confirm that Fortinet logs are flowing through and available.

Step 3: Configure Fortinet in Workbench

Now that we have the correct access configured and noted the credentials, we can integrate your tech with Workbench.

Note
Expel secures all login information our SOC analysts need about your devices in a MFA password product. Access to this login information is protected using our internal MFA processes. To learn more about the IP addresses all Expel traffic comes from, go here.

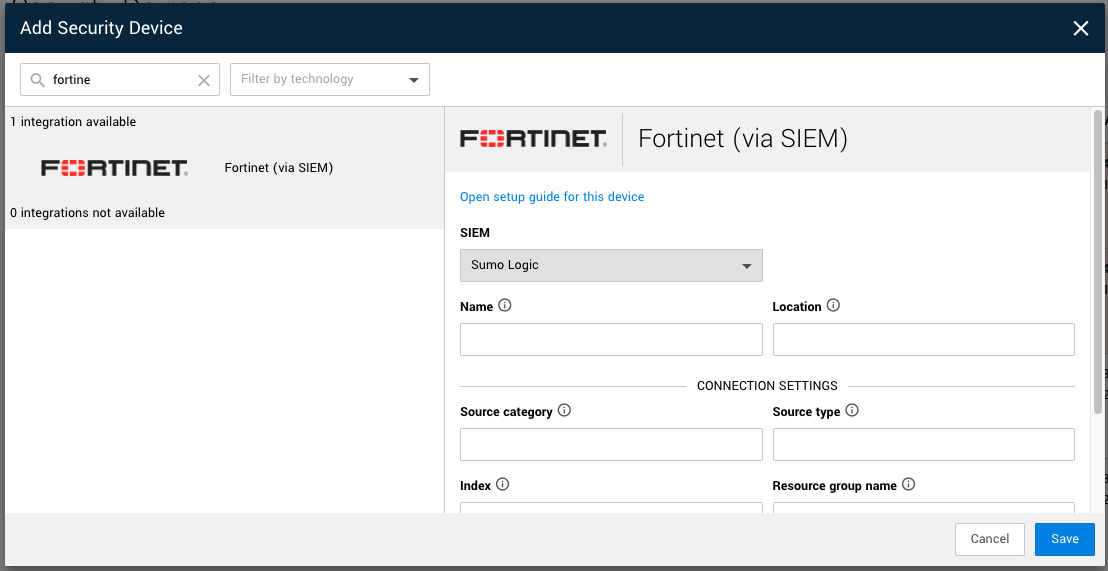

  1. In a new browser tab, go to https://workbench.expel.io/settings/security-devices?setupIntegration=fortinet_via_siem.

    Screenshot 2025-04-22 at 4.56.36 PM.png

  2. Complete the device fields as follows:

    • SIEM - select the SIEM that was onboarded in Step 2.

    • Name - enter the host name of the Fortinet device.

    • Location - enter the geographic location of the device.

  3. Fill in the Connection Settings fields based on the SIEM you selected:

    • Source category - enter the Sumo Logic source category for this device.

    • Source type - enter the Splunk source type for this device.

    • Resource group name - enter the Secureonix resource group name for this device.

    • Vendor - enter either the Exabeam Fusion SIEM vendor or the Microsoft Sentinel device vendor for this device.

    • Sumologic query indices - if you are subject to Sumo Logic’s Flex pricing, you will need to provide a comma-separated list of indexes you wish Expel to query in this field. If you are on the traditional Sumo Logic pricing model, do not use this field.

      If you are not sure if this applies to you or you need more information, see Considerations for Sumo Logic Flex Pricing Customers.

  4. Select Save.

You can see if the device is healthy on the Security Devices page. It may take a few minutes to see the device listed as healthy.

To check if alerts are coming through, navigate to the Alerts Analysis page. Scroll to the device you want to check and click View alerts. Switch to grid view, then check the list for device alerts. It can take 36 to 72 hours for alerts to appear after setup, as we tune your device.
